Welding cast aluminum is a game-changer in the automotive industry. It allows for the creation of high-performance components that are lightweight yet incredibly durable. From engine blocks to transmission housings, aluminum castings cut weight without sacrificing toughness. However, welding them requires serious expertise.

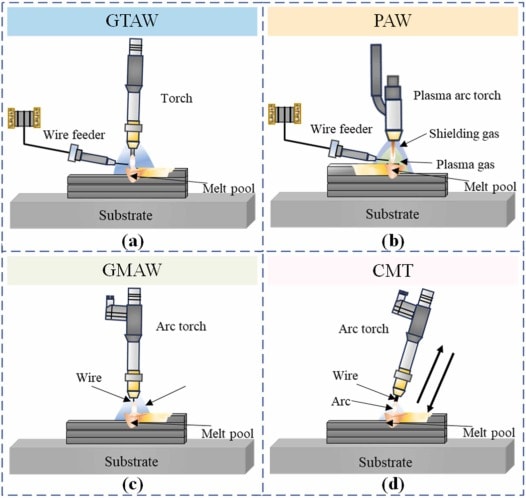

That’s where FCC NA stands out. With a legacy of excellence in automotive clutch manufacturing and deep expertise in aluminum welding (TIG welding, MIG welding, Plasma welding, etc.), we deliver industry-leading solutions for maximum performance and longevity.
Discover FCC NA’s Cutting-Edge Joining Technology!
Understanding the Weldability of Cast Aluminum
Mastering cast aluminum welding means knowing your casting alloys, understanding casting methods, and cutting through common misconceptions. Get it right, and you’ll achieve strong, reliable welds, crucial for automotive components and beyond.
Factors Affecting Cast Aluminum Weldability
Welding cast aluminum isn’t always straightforward. The success of cast aluminum weldability depends on several key factors.
- Alloy Composition: Elements like silicon and magnesium determine how easily the alloy can be welded.
- Casting Method: Sand, permanent mold, or die casting all influence porosity and grain structure, affecting weldability.
- Alloy Series: Some alloys, like 3XX.0 and 5XX.0, are easier to weld, while others, such as 7XX.0, pose more challenges.
Understanding these factors helps ensure a smoother welding process!
Common Misconceptions About Welding Cast Aluminum
Many believe that all welding aluminum castings are either easily weldable or completely unworkable. The truth? It depends on the alloy and casting process. Some castings require pre-treatment, specific filler materials, or controlled heat input for successful welding.
With over 80 years of expertise, FCC NA has developed proprietary methods to overcome these challenges, ensuring high-quality automotive aluminum welding in demanding automotive applications, such as motorcycle clutches.
Learn More About FCC NA’s Pioneering Welding & Joining Technology!
Types of Aluminum Castings and Their Weldability
Sand, permanent mold, and die casting are aluminum casting methods that come with their own welding challenges. Mastering the right techniques is key to achieving strong, reliable welds in automotive applications.
Sand Castings
Sand casting produces strong, durable parts but can introduce porosity, which may affect weld quality. To ensure reliable welds, best practices include thorough cleaning to remove contaminants, preheating to reduce thermal shock, and selecting the right filler metal for better weld integrity.
With FCC NA’s experience in diverse casting methods, we ensure optimal welding techniques for sand-cast aluminum components.
Permanent Mold Castings
Permanent mold casting welding offers fine-grain structure, superior mechanical properties, and lower porosity, making them ideal for automotive applications. However, their density can create welding challenges like high thermal conductivity and hot cracking.
Die Castings
Die-cast aluminum welding offers precision and a smooth finish but poses welding challenges due to trapped gases and impurities that can cause porosity and weak welds. Recognizable by their sleek appearance and ejector pin marks, these parts require specialized techniques for strong, reliable joints.
| Tooling Costs | Labor Costs | Typical Tolerances | Surface Finish | Typical Volume | |
| Permanent Mold | High | Low | +/- .01 – .03 in. | Good | Medium – High |
| Greensand | Low | Low | +/- .03 – o,6 in. | Average | Low – High |
| Die | Very High | Low | +/- .01-.015 in. | Very Good | Very High |
Welding Techniques for Cast Aluminum
To weld cast aluminum correctly, you need the right filler, precise heat control, and a strategy preventing porosity in aluminum welds. Nail these factors, and you’ll create strong, long-lasting welds built to handle the toughest jobs.
Choosing the Right Filler Material
Choosing the right filler material is key to strong, corrosion-resistant welds. Aluminum fillers like 4043 offer crack resistance but lower ductility, while 5356 provides higher strength with some cracking risks. To optimize weld quality, FCC NA uses vacuum-assisted processes to reduce porosity and specialized aluminum welding filler materials to enhance bond strength, ensuring durable die-cast aluminum components for demanding applications.
Preheating and Post-Weld Heat Treatment
Effective heat management is key to preventing cracking and distortion in cast aluminum welding. Preheating gradually warms the material to reduce thermal shock and ensure even heat distribution. After welding, post-weld heat treatment restores the material’s strength and ductility by relieving stresses and improving performance.
Porosity Prevention in Cast Aluminum Welding
TWI-global highlights how porosity is caused by trapped gases or contaminants and is a common issue in cast aluminum welding that weakens the weld. However, FCC NA takes proactive steps to prevent it.
Using advanced shielding gas techniques and strict contamination removal protocols, including thorough surface prep, we ensure strong, defect-free welds. Our dedication to quality has earned us multiple industry awards, highlighting our expertise in preventing welding issues like porosity.
Explore Our Innovative Welding Technologies for Automotive Manufacturing
Industry Applications: Welding Cast Aluminum in Automotive Manufacturing
Welding cast aluminum is a game-changer in automotive manufacturing, especially for high-performance parts like clutches and transmission components.
Clutch Components and Transmission Parts
Clutch components and transmission parts require strong, precise welds to handle extreme heat, pressure, and stress. FCC NA’s expertise in both clutch manufacturing and aluminum welding ensures top durability by tackling challenges like porosity, cracking, and weld control with advanced techniques.
As a leader in automotive and motorcycle clutches, we deliver reliable, high-performance components built for the toughest conditions.
Case Study: Successful Cast Aluminum Welding in High-Performance Vehicles

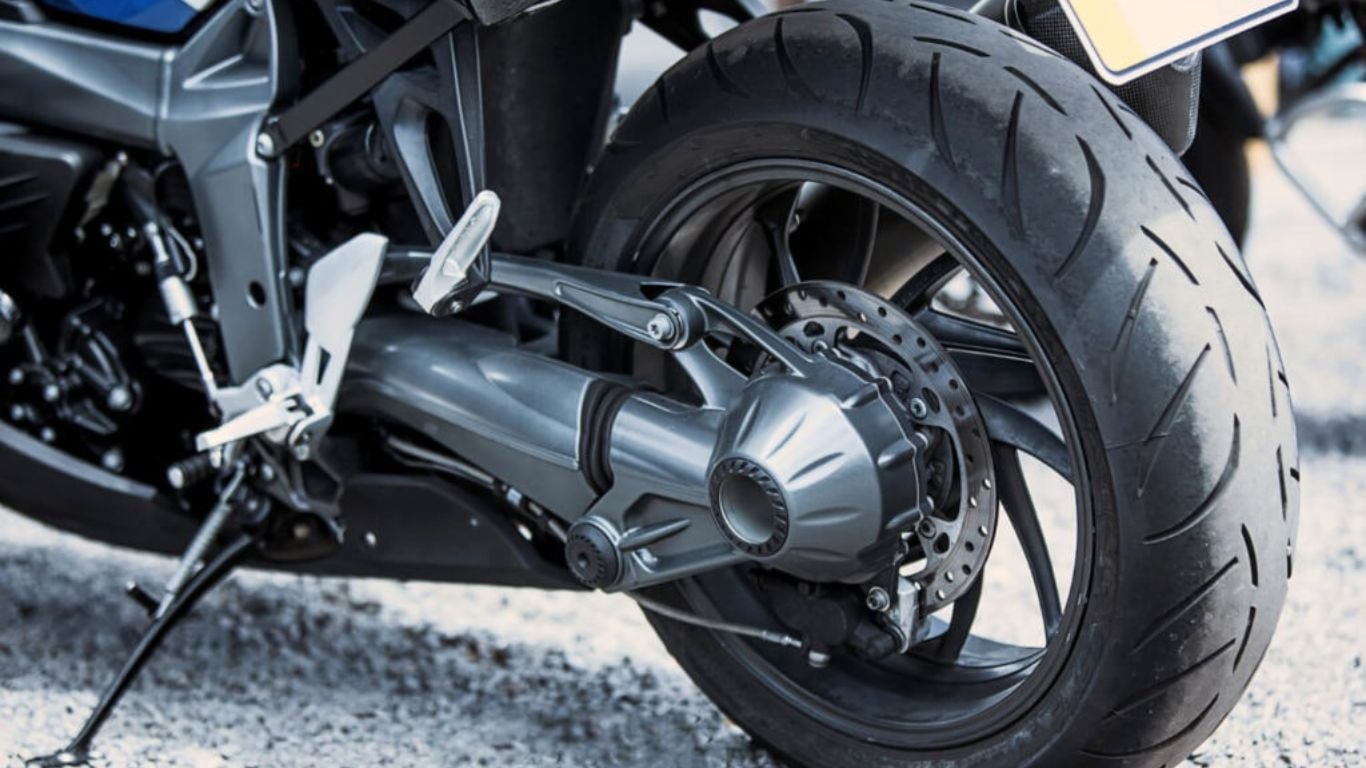

FCC NA has a strong history of meeting the demanding welding needs of high-performance vehicles, working with brands like Honda, Suzuki, and Triumph. We’ve successfully delivered precise welds on critical cast aluminum components, such as engine parts and transmission housings, ensuring they perform under extreme conditions.
Our advanced welding techniques and strict quality control help us exceed the high performance and durability standards required, providing reliable components that thrive in the toughest driving environments.
Future Trends in Cast Aluminum Welding for Automotive Applications
The future of cast aluminum welding in automotive is here.
Advancements in Welding Technology
As automotive technology evolves, so do welding techniques to create lighter, stronger, and more efficient vehicles. FCC NA manages to stay ahead with advanced solutions like laser welding for precision and friction stir welding for strong, defect-free joints.
These innovations support the rise of EVs, hybrids, and high-performance drivetrains, ensuring our components meet the highest standards for strength, efficiency, and reliability.
Sustainability in Cast Aluminum Welding

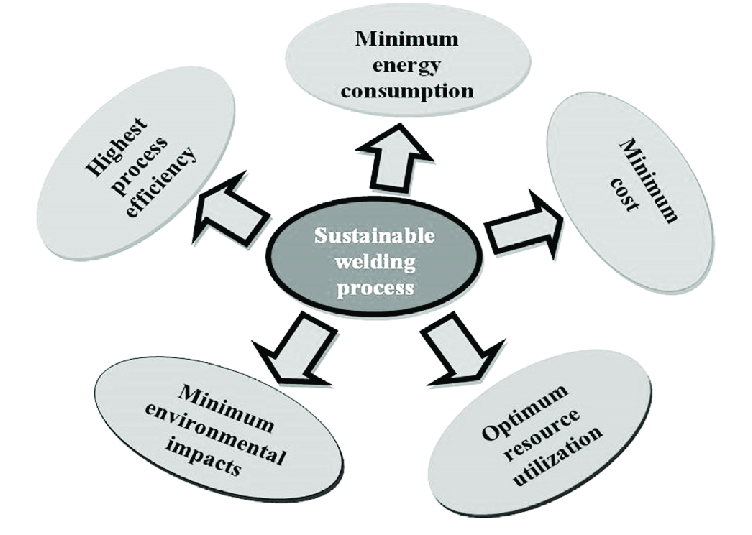

As the automotive industry goes greener, FCC NA is making cast aluminum welding more sustainable by reducing waste, conserving energy, and minimizing environmental impact. Precision techniques cut material waste, while advanced methods like laser and friction stir welding boost efficiency with lower energy use.
Eco-friendly shielding gases and low-emission welding further shrink our footprint, reinforcing our commitment to a cleaner, more sustainable future.
FAQ Section
Welding cast aluminum comes with its challenges, but with FCC NA’s expertise, advanced techniques, and cutting-edge technology, we deliver high-quality, reliable welds for all alloys and applications.
Can All Types of Cast Aluminum Be Welded?
While most cast aluminum can be welded, the process requires expertise. FCC NA’s extensive experience across various aluminum alloys ensures optimal welding solutions for each type.
What Are the Most Common Challenges in Welding Cast Aluminum?
Common challenges include porosity, heat control, and maintaining structural integrity. FCC NA’s advanced techniques and quality assurance processes effectively address these issues.
How Does FCC NA Ensure the Quality of Cast Aluminum Welds?
We employ a combination of automated and manual quality checks and rigorous production processes and leverage our global manufacturing capabilities to ensure consistent, high-quality welds.
Are There Any New Technologies Improving Cast Aluminum Welding?
Yes, FCC NA is at the forefront of developing and implementing next-generation welding technologies, including advanced heat management systems and innovative filler rod materials.
Leading the Way in Aluminum Welding Excellence
Welding cast aluminum is no easy feat, but it’s necessary in automotive manufacturing. Mastering alloy properties and cutting-edge techniques takes skill, precision, and expertise.
At FCC NA, we don’t just meet the standard, we set it. As leaders in automotive clutch manufacturing with deep expertise in aluminum welding, we deliver high-quality, innovative, and sustainable solutions that drive the industry forward.
Partner With FCC NA for Advanced Cast Aluminum Welding Solutions
